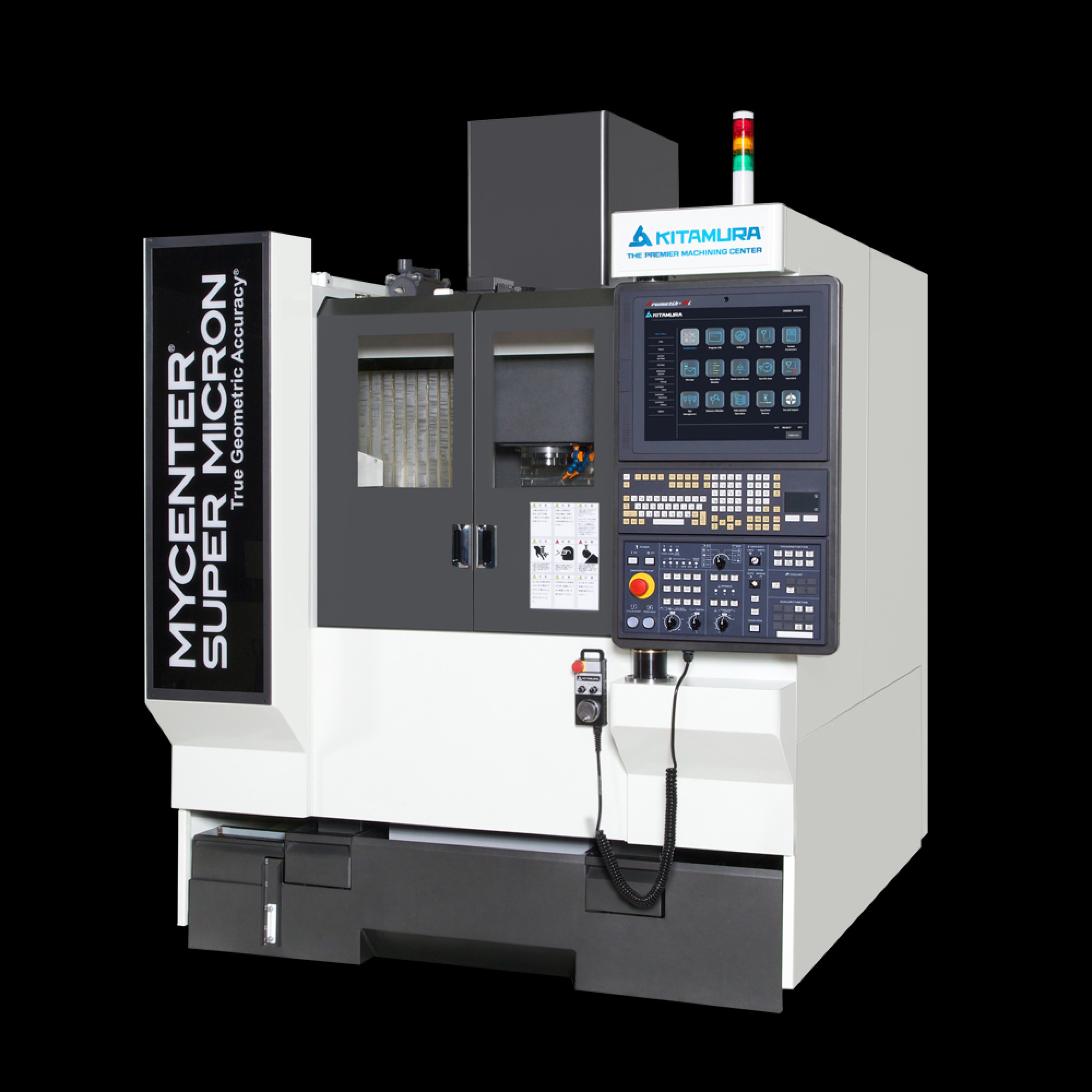

Mycenter-Super Micron Vertical Machining Center

Technische Daten
Table Size: 15.7” x 19.7” (400 x 500mm)
Travel (X, Y, Z): 17.7” x 13.8” x 11.8”
(450 x 350 x 300mm)
Spindle Taper: HSK-E32
Spindle Speed: 400~40,000rpm
Tool Storage Capacity: 18Pcs. (40 Optional)
Rapid Feed (X, Y, Z): 591ipm (15m/min) X, Y, Z
Power Requirement: 30KVA

• Ultra high precision jig borer accuracies +/-0.0005mm (+/-0.00002")/full stroke

• Mirror finished box way construction with thermally stable column design

• High Speed 40,000rpm HSK-E32 spindle

• Ideal for medical/dental, mold/electronic, hard milling, tool & die and prototype applications requiring jig-bore-level accuracies

• Optional graphite package available

• Heidenhain linear glass scales in all axes

• 2,800 block/sec processing speeds for smoother and faster machining of complex work pieces

• 67 Million Pulse encoder servo motor system for smoother, more accurate surface finishes
