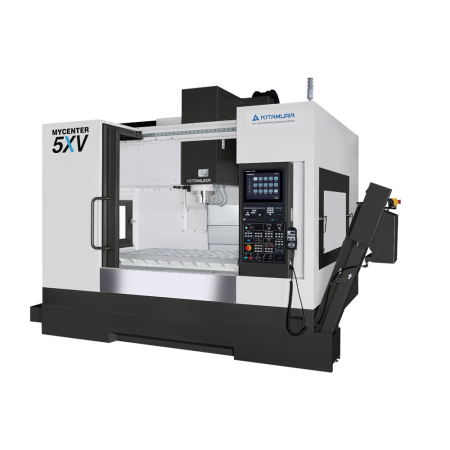

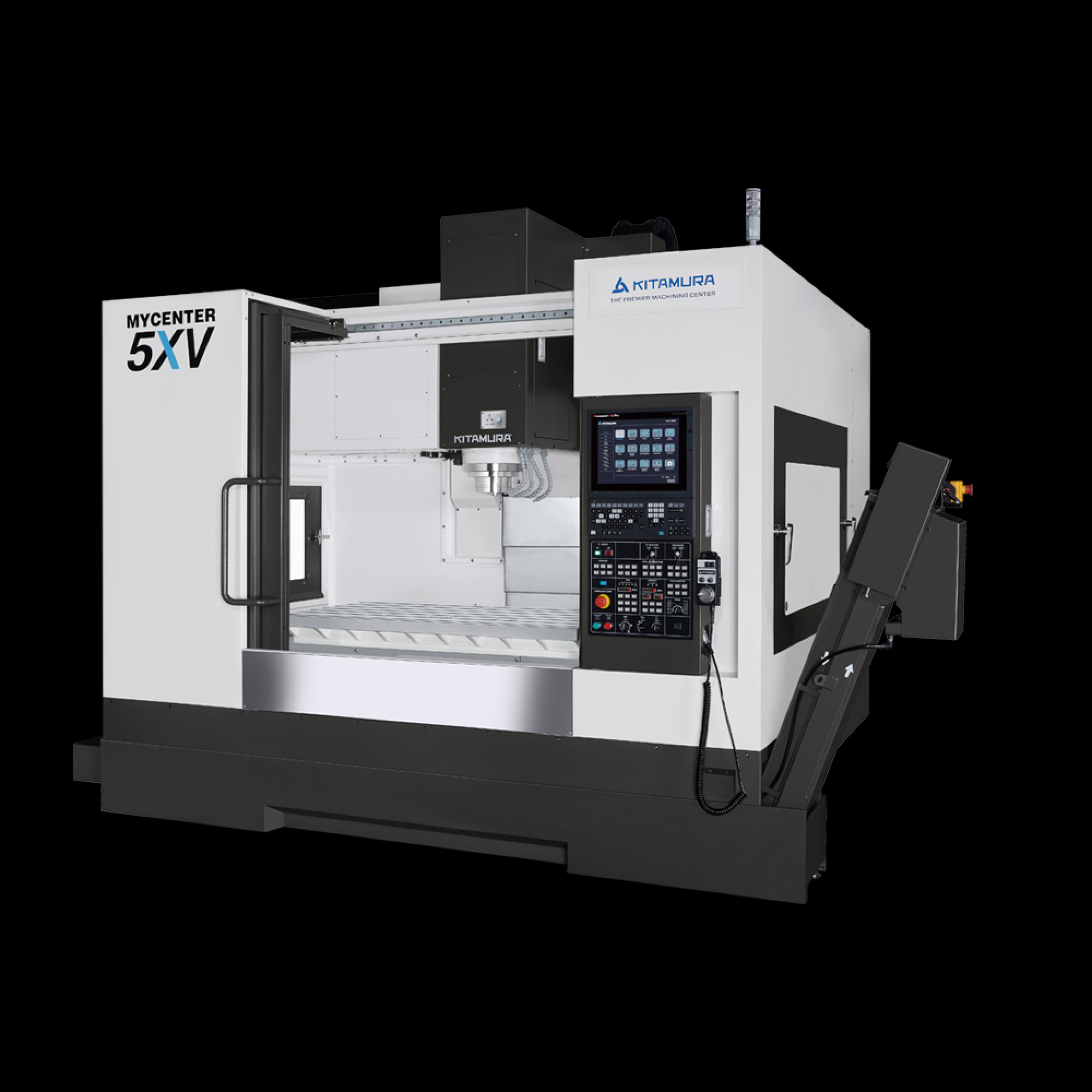

Mycenter-5XV Vertical Machining Center

Technische Daten
Table Size: 27.6” x 55.9” (700 x 1,420mm)
Travel (X, Y, Z): 50.0” x 28.0” x 25.0”
(1,270 x 710 x 635mm)
Spindle Taper: NST No. 40
Spindle Speed: 50~15,000rpm, Built-in
Tool Storage Capacity: 40 Pcs.
Tool Change Time (T-T/C-C): 2.2 Sec. /4.2 Sec.
Rapid Feed (X, Y x Z): 2,047ipm (52m/min) X/Y x 1,890ipm (48m/min) Z
Power Requirement: 40KVA

• Class Leading 40-Tool standard ATC

• Large work envelope within a uniquely compact design

• IAC System 1 Thermal Compensation System

• #40, 41HP, high speed 15,000rpm built-in spindle offers high speeds and heavy duty cutting capabilities

• Standard scraper type chip conveyor can be installed on either the right or left-hand side of the machine

• High Speed Processing Kitamura Arumatik-Mi Pro controller offers up to 16x faster processing speeds!

• Set & Inspect on machine probing app ready to use with Renishaw probe system
